Join the Roof Tie Down Revolution

Giving Builders a Choice

Advantages are:

  • Code Compliant - Australia-wide Certificate Supplied with Order

  • Cost Competitive – Same cost as straps

  • Fast & Easy to Install – Impact Driver Technology

  • No Skew Nailing – Eliminate ribbon plate damage

  • No dragging coil gun hoses

  • Reduced Risk of non-compliant gun nailed connections

  • Burmon Bracket is 4 times the capacity of triple grips

  • All Fixings supplied in box

  • 100% Australian Made and Owned

Australian Patent 2013209390

Sight inspection holes reveals Burmon red screws

Australian Code Compliant Certifications State to State

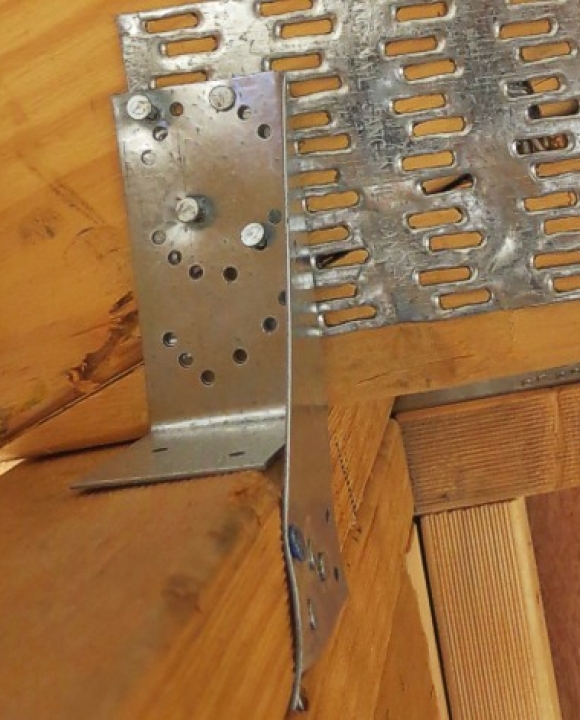

Is your apprentice struggling with this?

Inadequate distance from pre-punched holes

Edge distances

Close grouping of nails

Too many nails

Nails missing

Triple Grips

Multi Grips

Cyclone Straps

These methods have been used for the past 20 years!!!!

CONNECTOR COMPARISON

Which Tie Down Connector is Right for You?


Burmon Bracket

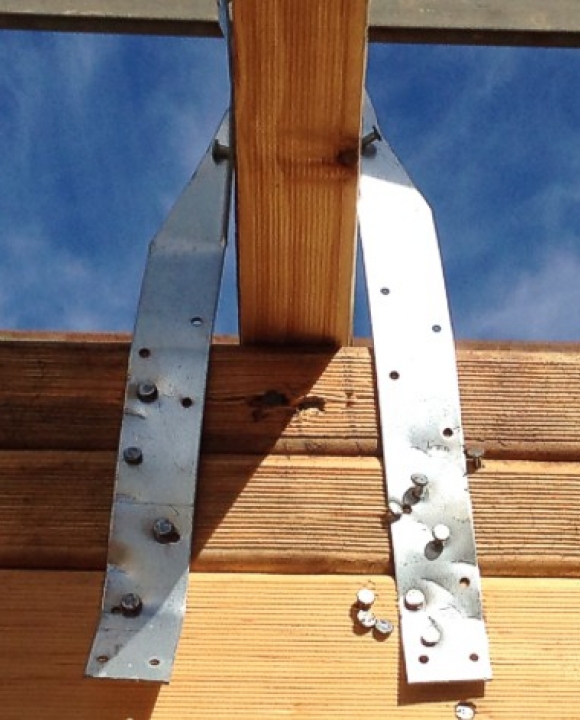

Cyclone Tie

Hand nailed

Cyclone Tie

Gun nailed incorrectly

Triple Grip

Hand nailed

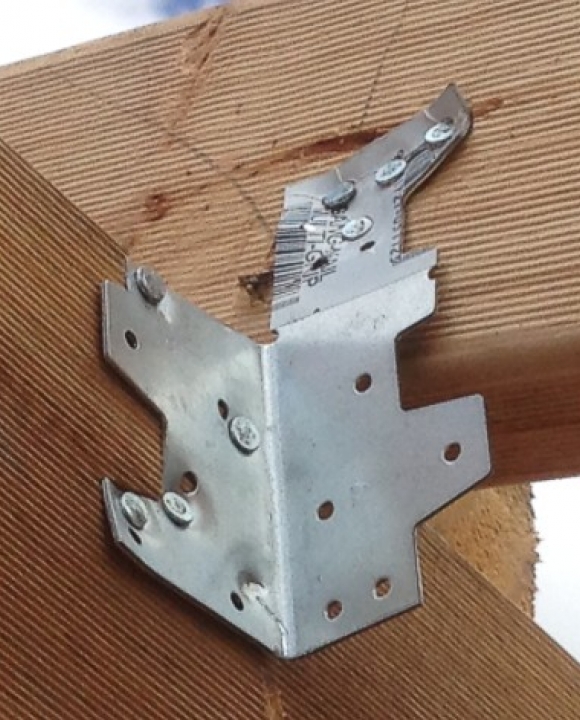

Multi Grip

Gun nailed

Cost per connector including fixings

$2.00

$2.00

$2.00

$0.80

$0.80

Number of hours to install connectors

4 hours

14 hours

6 hours

14 hours

6 hours

Labour cost to install connectors @ $35 p/h

$140

$490

$490

Compliant

Designed to resist winds over 115km/h

Eliminate Ribbon Plate Crushing

Eliminate Ribbon Plate Damage (no skew nailing)

Connectors hold up Trusses by themselves, making bracing safer, easier & faster

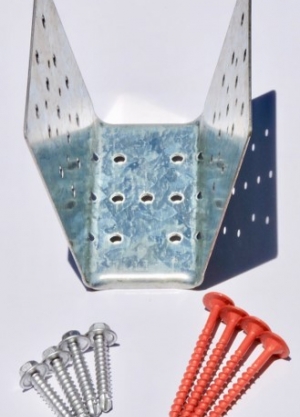

Specifications

Easy to Install

1 Position

Roof Truss Tie Down Installation Step 1

2 Fix

Roof Truss Tie Down Installation Step 2

3 Secure

Roof Truss Tie Down Installation Step 3

Load Data

Limit State Design Capacity (k/N)

Number
of Fixings

Timber joint
JD5

Timber joint
JD4

Timber joint
JD3

8

6.6

9.4

13.0

12

9.9

14.1

19.5

Fixing Guide

Number
of screws

Position

8

4 screws into top plate
2 screws into the truss each side

12

6 screws into top plate
3 screws into the truss each side

Specification

Steel

  1. Grade G300
  2. Thickness 1.2mm
  3. Galvanized Coating Z275

Screws

  1. Type 17, Burmon square drive
  2. 65mm x 10 gauge Galvanised

Australian Code Compliant Certifications State to State

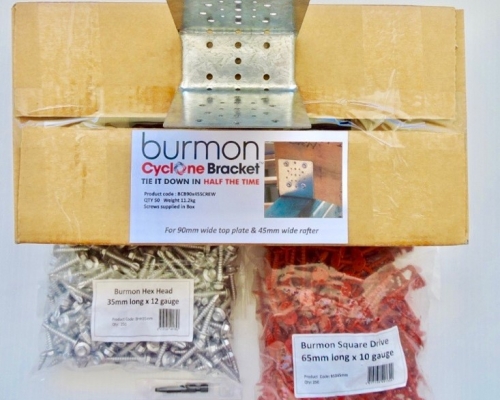

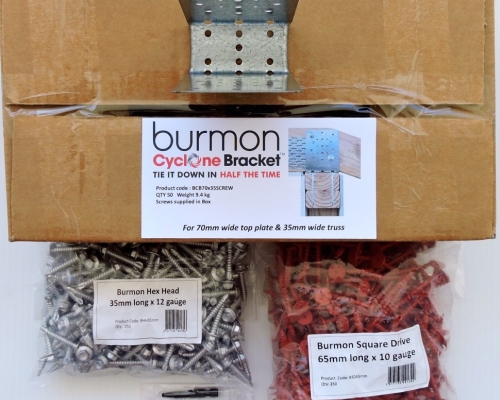

Burmon Bracket for Roof Trusses

Hurricane Anchor for ICF Single Sill Plate Connection to Truss/Rafter - Burmon Building Products
Size of Roof Square Meters Boxes Required
Small 190 1
Medium 230 2
Large 300 3+

Note: Table above serves as a guide only

Australian Code Compliant Certifications State to State

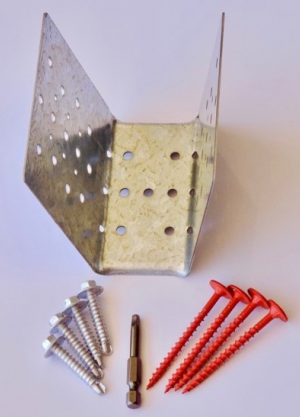

Burmon Bracket for LVL Rafter Tie Down

Size of Roof Square Meters Boxes Required
Small 190 1
Medium 230 2
Large 300 3+

Note: Table above serves as a guide only

Australian Code Compliant Certifications State to State

What Builders Say:

“One of the biggest advantages of your product, is the fact it eliminates the cladding or sheeting bump on the upper plate line”

Phil, Lead Carpenter for Anstoy Homes, NSW

“Best new product I’ve seen in the building industry for over 10 years.”

Nick, Gold Coast Multiple Master Builder Award Winner, Qld

“I like the fact that the brackets hold the trusses up by themselves, bracing the trusses is too easy.”

Ash, Lead Carpenter for Sanctuary Homes, Qld

“I really like them, especially on exposed beams, smart idea.”

Shay, Owner, SC Constructions, Qld

“They go on really smooth, no more triples.”

Kirk, Captain's Building, Qld

“Saves time overall, no issue moving trusses when brackets are already installed on top plate.”

Mark, Senior Contractor, GJ Gardner Homes, Qld

“Quality product!”

Paul, Success Homes, Nth Qld

“I’ve been using the Burmon Brackets for over 4 years now, wouldn’t go back to straps or grips.”

Derrick, Forrest Constructions, Sunshine Coast Qld

Order Here

For Standard Truss

$125.00 (GST excl.) per Box of 50 Burmon Brackets including all screws and driver bit plus Code Compliant Certificate

Includes shipping within Australia

Select Bracket size:

For LVL Tie Down

$125.00 (GST excl.) per Box of 50 Burmon Brackets including all screws and driver bit plus Code Compliant Certificate

Includes shipping within Australia

Select Bracket size:
