LVL RAFTER Tie Down CONNECTOR

THE SUPERIOR TIE DOWN CONNECTOR FOR LVL RAFTERS

PRODUCT CODES:
BCB45x45SCREW  BCB70x45SCREW BCB90x45SCREW


The Burmon Bracket (Australian Patent 2013209390) has revolutionized the way LVL rafters are tied down to the top plate/beam. Once you have done your set out, screw fix the brackets to the top plate/beam. Then simply drop the rafter inside the bracket and fix it off using the Burmon screws supplied - job done. Builders who prefer to use LVL rafters over trusses until now, have not had available a tie down connector that has been specifically designed to tie down 45mm wide rafters. The Burmon Bracket is faster and easier to install and has a higher tie down capacity than triple grips and straps.

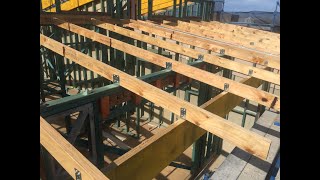

Burmon Brackets for LVL Rafter Tie Downs

FEATURES

  • Available for 35mm and 45mm wide rafters
  • Designed for LVL to wall frame/beam tie down
  • Easy to install
  • Code compliant in each state of Australia
  • No skew nailing required
  • No coil guns required
  • Australian made and owned
  • Patented technology in Australia, New Zealand, USA and Canada

Specification

STEEL

Grade: G300
Thickness: 1.2mm
Galvanised coating: Z275

Burmon Screw - Burmon Building Products

SCREWS

TOP PLATE

Type 17 Burmon square drive
65mm x 10 gauge galvanised

RAFTER

Type 17 Burmon hex head
35mm x 12 gauge

Compliance

The Burmon Cyclone Bracket is fully certified and tested for use in accordance with AS1684 Residential Timber Framed Construction.

Notes

  1. The Limit State Design capacities for the Burmon Cyclone Bracket resisting wind uplift are as shown in these tables. Design capacities have been obtained from laboratory testing and procedures given in AS1720.1.

  2. Wind Uplift capacities are baded on AS1720.1:2010 using k1=kt, for use in conjunction with AS/NZS 1170:2002 load code.

  3. The specified Burmon Screw must be used in conjunction with the Burmon Cyclone Bracket to achieve load ratings as per load tables.

  4. Cyclone Bracket (Australian Patent 2013209390) is certified by Registered Structural and Civil Engineers for the Australian Building Industry in accordance with the relevant Australian Standards and Building Codes. Cyclone Bracket is structurally adequate provided it is installed and used in complete accordance with the guide on Burmon brochures and websites.

Load Data

LIMIT STATE DESIGN CAPACITY (kN)

Number of fixings
Timber Joints
JD4
JD3

8

9.4

13.0

12

14.1

19.5

Fixing Guide

Number of screws
Position

8

4 screws into top plate
2 screws each side of the Truss

12

6 screws into top plate
3 screws each side of the Truss

ALSO AVAILABLE

Use Burmon Cyclone Bracket Extreme for even higher load rating.

This Engineered Building Product complies with the AS/NZS 1170 Loading Code

Technical Info & Downloads

Note: DWG, EASM, STEP and EPRT 3d Models may be viewed using free EDrawings Viewer software

Download the EDrawings Viewer

ProductProduct CodeDescriptionDrawing #PDFDWGEASMSTEPEPRTInstallation GuideBrochureInstallation Video
Burmon Cyclone Bracket 90mm long x 45mm wideBCBS90x45 SCREWSingle3
Burmon Cyclone Bracket 70mm long x 45mm wideBCBS70x45 SCREWSingle4
Burmon Cyclone Bracket 45mm long x 45mm wideBCBS45x45 SCREWSingle5
Burmon Cyclone BracketBCBS90x45 SCREW45mm LVL Rafter to 90mm Top Plate/Beam6
Burmon Cyclone BracketBCBS70x45 SCREW45mm LVL Rafter to 70mm Top Plate/Beam7
Burmon Cyclone BracketBCBS45x45 SCREW45mm LVL Rafter to 45mm Top Plate/Beam8
